HAFCO

HAFCO BS-8DS bandsaw blade size

Metal-cutting bandsaw · Also listed as B008

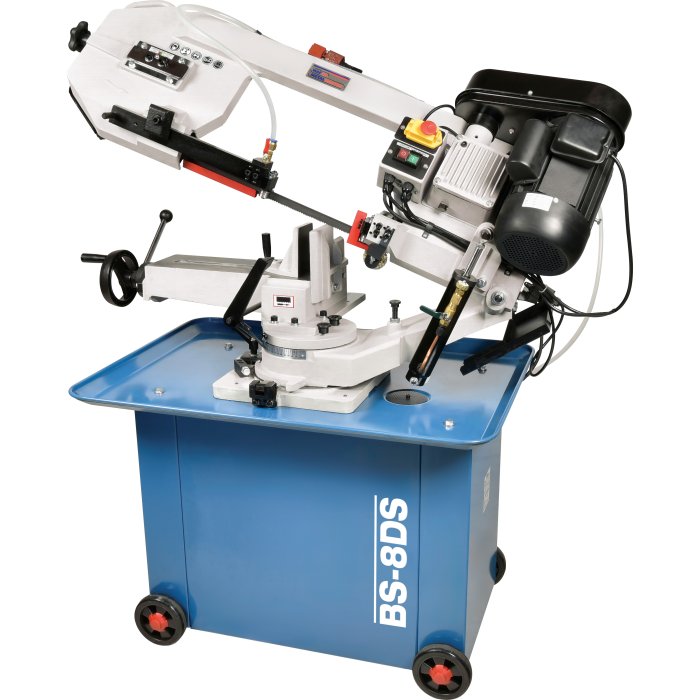

Photo: HAFCO · Source ↗︎
HAFCO BS-8DS

Click the photo to zoom in and move the pointer to look around. Esc closes.
Replacement blade lengthDocumented dimensions

2360 mm

Full blade loop length · 92.91 in

Blade width 19 mm – 19 mm

Find a replacement blade ↓
2 other machines take this exact blade ↗︎

Specification

As written by the manufacturer
(mm)Blade Size (L x W x T) 2360 x 19 x 0.9
Blade loop length
2360 mm · 92.9134 in
Blade width range
19 mm – 19 mm
Thickness constraint
0.9 mm
Order code
B008
Motor / supply
1.1 kW / 1.5 hp, 240 V
Capacity rectangle (W x H) @ 90°
215 x 205 mm
Capacity round @ 90°
205 mm
Blade speeds
24-41-61-82 m/min
Documented for
Australia
Source checked
1 Oct 2026

Australian source (Hare & Forbes Machineryhouse, the HAFCO brand owner), standard machine only. Blade length, width and thickness are as stated on the product page; the manual's specification page is an image, so it was not used to cross-check them. TPI and blade material are not established by these dimensions. Check your model label before ordering.
