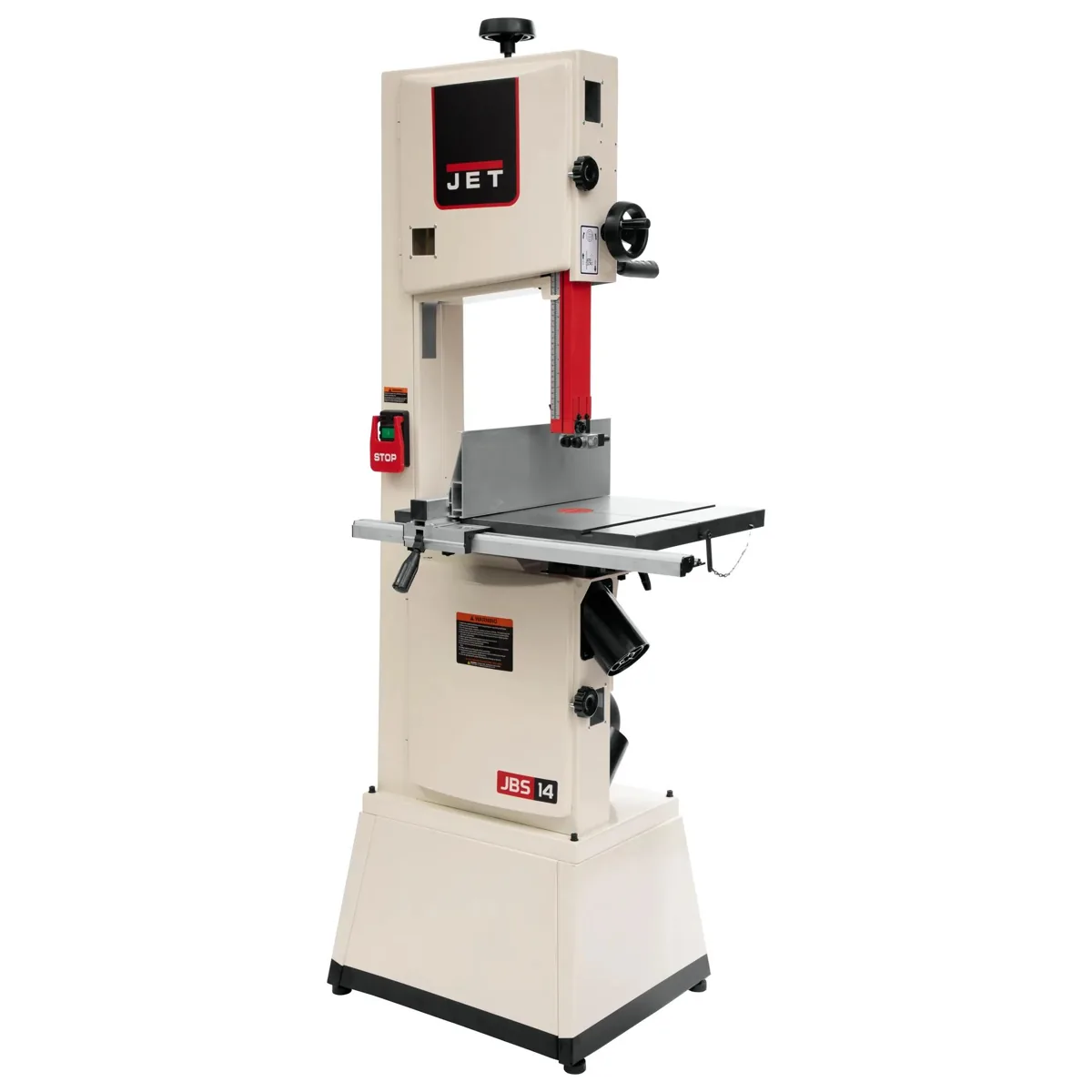

JET JWBS-14SFX-BLK bandsaw blade size
Floor-standing bandsaw · Also listed as JT1-1371
Replacement blade lengthDocumented dimensions
116 in
Full blade loop length · 2946.4 mm
Blade width 0.125 in – 0.75 in
1 other machine takes this exact blade ↗︎Specification
- As written by the manufacturer
- Blade length (blade not provided) 116 in. (2947 mm); Minimum blade width 1/8 in. (3.175 mm); Maximum blade width 3/4 in. (19 mm)
- Blade loop length
- 2946.4 mm · 116 in
- Blade width range
- 0.125 in – 0.75 in
- Thickness constraint
- Unknown — not documented here
- Motor / supply
- 1.75 HP, 115/230 V (prewired 115 V)
- Wheel diameter
- 14 in (355 mm)
- Resaw height
- 13 in (330 mm)
- Documented for
- United States
- Source checked
- 29 Sep 2026
US source and standard machine only. Blade thickness and TPI are not established by this source; check your model label before ordering.
