Size search: 120 inch bandsaw blade

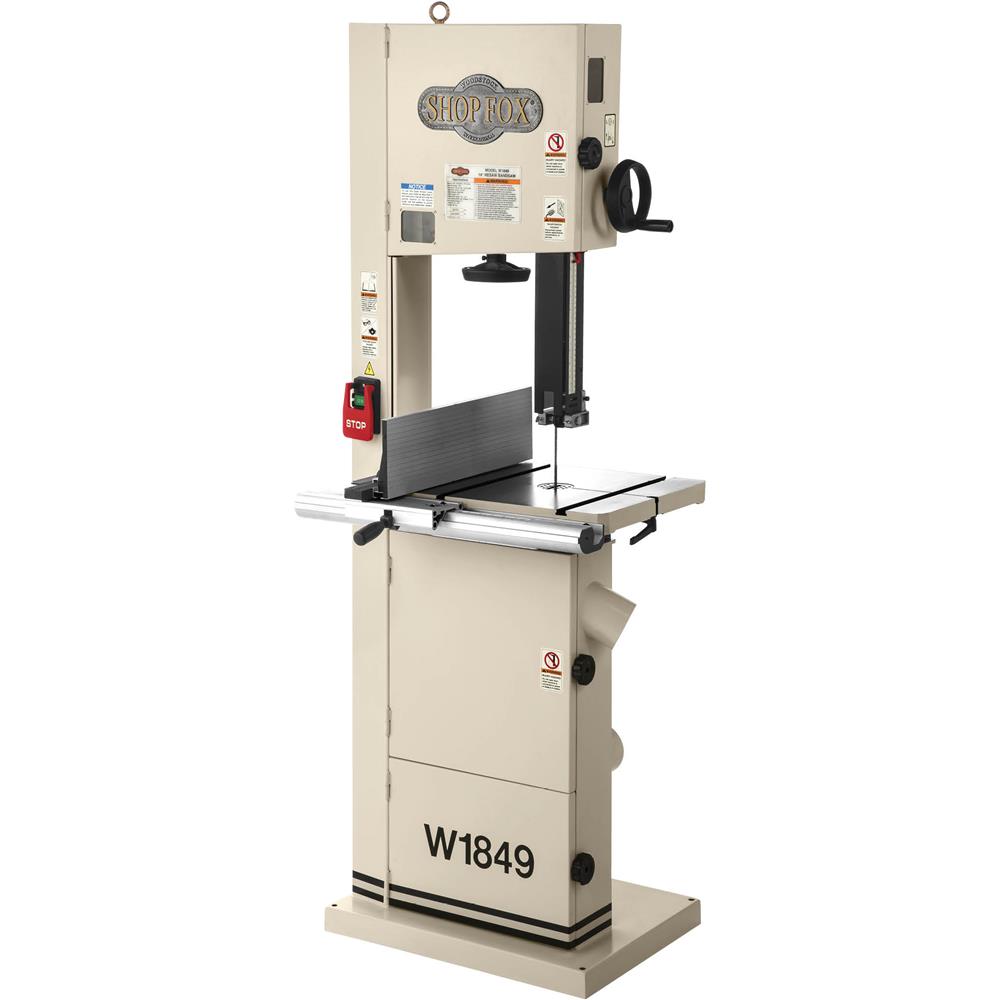

W1849
Floor-standing bandsaw
Replacement blade lengthDocumented dimensions
120 in
Full blade loop length · 3048 mm
Blade width 0.125 in – 0.75 in
3 other machines take this exact blade ↗︎Specification
- As written by the manufacturer
- Standard Blade Length 120 in.; Blade Width Range 1/8 – 3/4 in. (product page: Blade size: 120" (1/8" to 3/4" widths))
- Blade loop length
- 3048 mm · 120 in
- Blade width range
- 0.125 in – 0.75 in
- Thickness constraint
- Unknown — not documented here
- Motor / supply
- 2 HP, 110V/220V (prewired 110V), single-phase, 19A/9.5A
- Wheel diameter
- 14 in
- Resaw height
- 14 in
- Documented for
- United States
- Source checked
- 29 Sep 2026
US source and standard machine only. Blade thickness and TPI are not established by this source; check your model label before ordering.
Find a replacement blade
Search by the documented size, then check the product details against this page before ordering.
Retailer searches do not establish a product fit. Coverage is country-specific; shipping is not guaranteed. Affiliate disclosure: we may earn a commission from eligible links, at no cost to you. As an Amazon Associate I earn from qualifying purchases. A link does not indicate current stock or a price promise.
Same blade, other machines
The 120 in blade is documented for 3 other machines.
