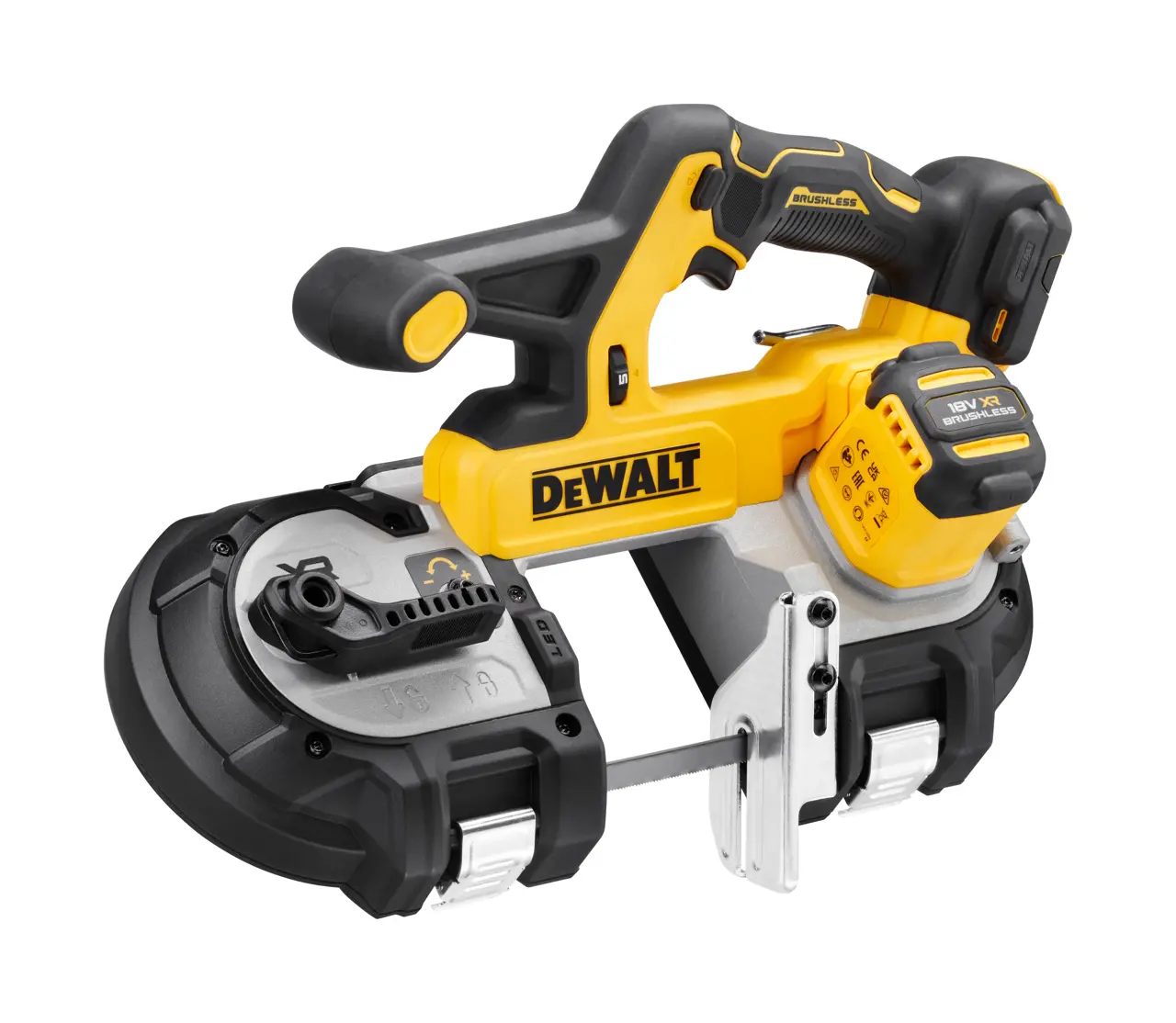

DEWALT DCS378 bandsaw blade size
Portable bandsaw · Also listed as DCS378B, DCS378N, DCS378N-XJ, DCS378P1
Replacement blade lengthDocumented dimensions
899 mm
Full blade loop length · 35.39 in
Blade width 12.7 mm – 12.7 mm
Specification
- As written by the manufacturer
- Blade length dimensions mm 899; Blade width dimensions mm 0.5; Blade height dimensions mm 12.7
- Blade loop length
- 899 mm · 35.3937 in
- Blade width range
- 12.7 mm – 12.7 mm
- Thickness constraint
- 0.5 mm
- Motor / supply
- 18 VDC XR Li-Ion; 530 W max. power output
- Max. cutting capacity
- 86 mm
- Documented for
- United Kingdom
- Source checked
- 29 Sep 2026
UK/EU Type 2 manual; DEWALT labels band width as 'height' (12.7 mm) and thickness as 'width' (0.5 mm). TPI is not established by these dimensions.
Find a replacement blade
Search by the documented size, then check the product details against this page before ordering.
No retailer mapping for this configuration in your selected country yet. Use the documented size with a local supplier.
Retailer searches do not establish a product fit. Coverage is country-specific; shipping is not guaranteed. Affiliate disclosure: we may earn a commission from eligible links, at no cost to you. As an Amazon Associate I earn from qualifying purchases. A link does not indicate current stock or a price promise.
Fitted this size? Tell others how it went
Reports from visitors, not verified by BenchRefill. The size above comes from the manufacturer source.
We read every report before it appears. We remove spam and personal details but publish negative reports too. We cannot confirm that the writer owns this machine.
