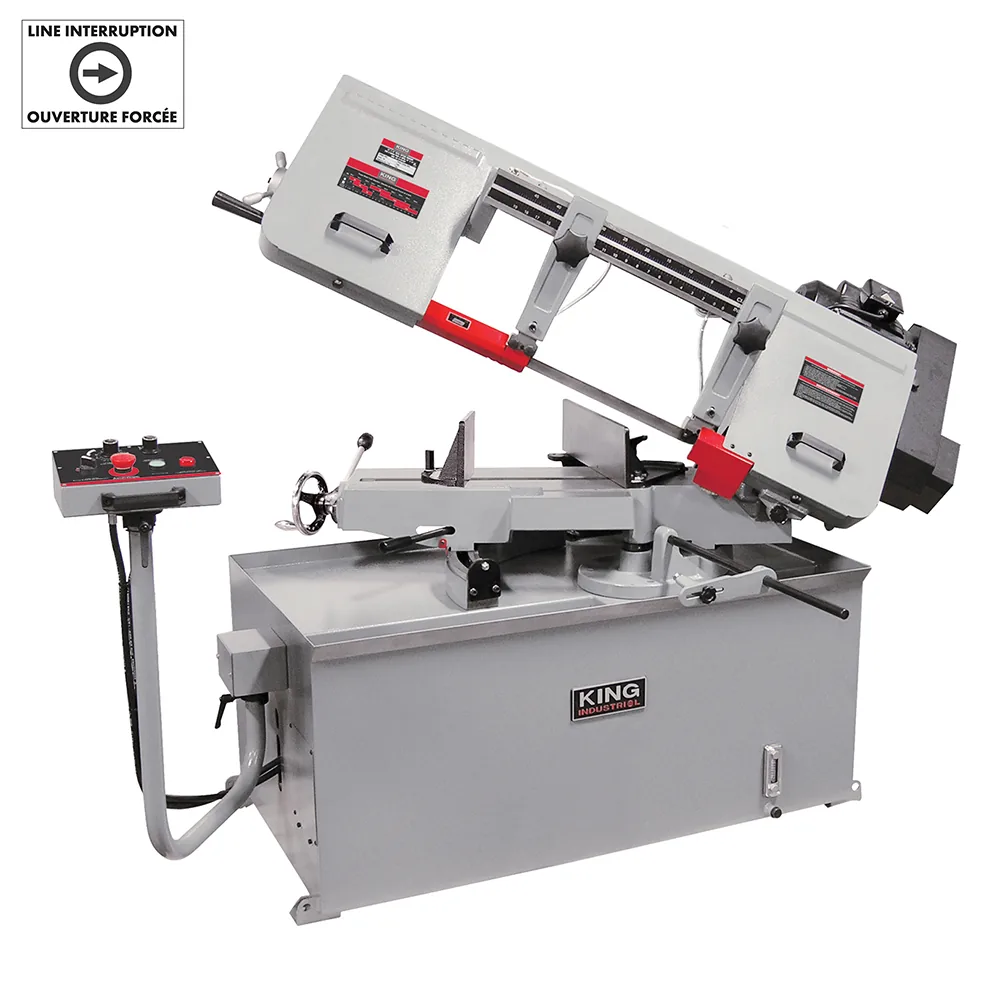

King Canada KC-228S-V-6 bandsaw blade size

Specification

As written by the manufacturer

BLADE 121-3/4" x 1" x 0.035"

Blade loop length

3092.45 mm · 121.75 in

Blade width range

1 in – 1 in

Thickness constraint

Unknown — not documented here

Motor / supply

2 HP, 2.6 Amp.; 600V, 3 phase, 60 Hz

Blade speed

73-312 FPM (variable)

Cutting capacity at 90°

Rect. 10" x 18"; Diam. 10"

Documented for

Canada

Source checked

1 Oct 2026

Canadian source, standard machine only. Blade length and width are as stated; TPI and blade material are not established by these dimensions. The linked instruction manual gives the same 121-3/4" x 1" blade, but the replacement blades listed on the page are 122" x .032" x 1" (about 6 mm longer); measure your current blade if in doubt. Blade thickness is not recorded because the page and manual (0.035") differ from those replacement blades (0.032"). Check your model label before ordering.
