Photo: HiKOKI
HiKOKIBandsaw blade
CB3612DA
AU · standard configuration
Documented dimensionsBand Saw Blade Dimensions (LxWxH) 12.5 x 0.5 x 1,140mmView size →
Bandsaw blade length
1140 mm
44.88 in · full loop length
14 documented machines take this exact bandsaw blade. Every record below cites the manufacturer source that states this size. Nearby sizes are listed separately, never merged. Metric and inch sizes explained ↗︎
Machines that take it
Australia
Photo: Makita
MakitaBandsaw blade
2107F
AU · standard configuration
Documented dimensionsBlade size: Length 1,140 mm; Width 13 mm; Thickness 0.5 mmView size →
Photo: Makita
MakitaBandsaw blade
DPB180
AU · standard configuration
Documented dimensionsBlade size (LxWxH) 1,140 x 13 x 0.5mmView size →
Photo: Makita
MakitaBandsaw blade
PB002G
AU · standard configuration
Documented dimensionsBlade size (LxWxH) 1,140 x 13 x 0.5mmView size →
Illustration: Portable bandsaw
MilwaukeeBandsaw blade
M18 FBS125
AU · standard configuration
Documented dimensionsBlade Length 1,140 mmView size →
Illustration: Portable bandsaw
MilwaukeeBandsaw blade
M18 FBS125DO
AU · standard configuration
Documented dimensionsBlade Size 1,140mmView size →
Documented in other countries
Regional versions can differ. Check your machine’s model plate before relying on these.
Illustration: Portable bandsaw
DEWALTBandsaw blade
DCS374
UK · standard configuration
Documented dimensionsBlade length dimensions mm 1140; Blade width dimensions mm 0.5; Blade height dimensions mm 12.5View size →
Photo: Güde
GüdeBandsaw blade
MBS 1100
DE · standard configuration
Documented dimensionsBreite des Sägebands: 13 mm; Länge des Sägebands: 1140 mm; Stärke des Sägebands: 0,65 mmView size →

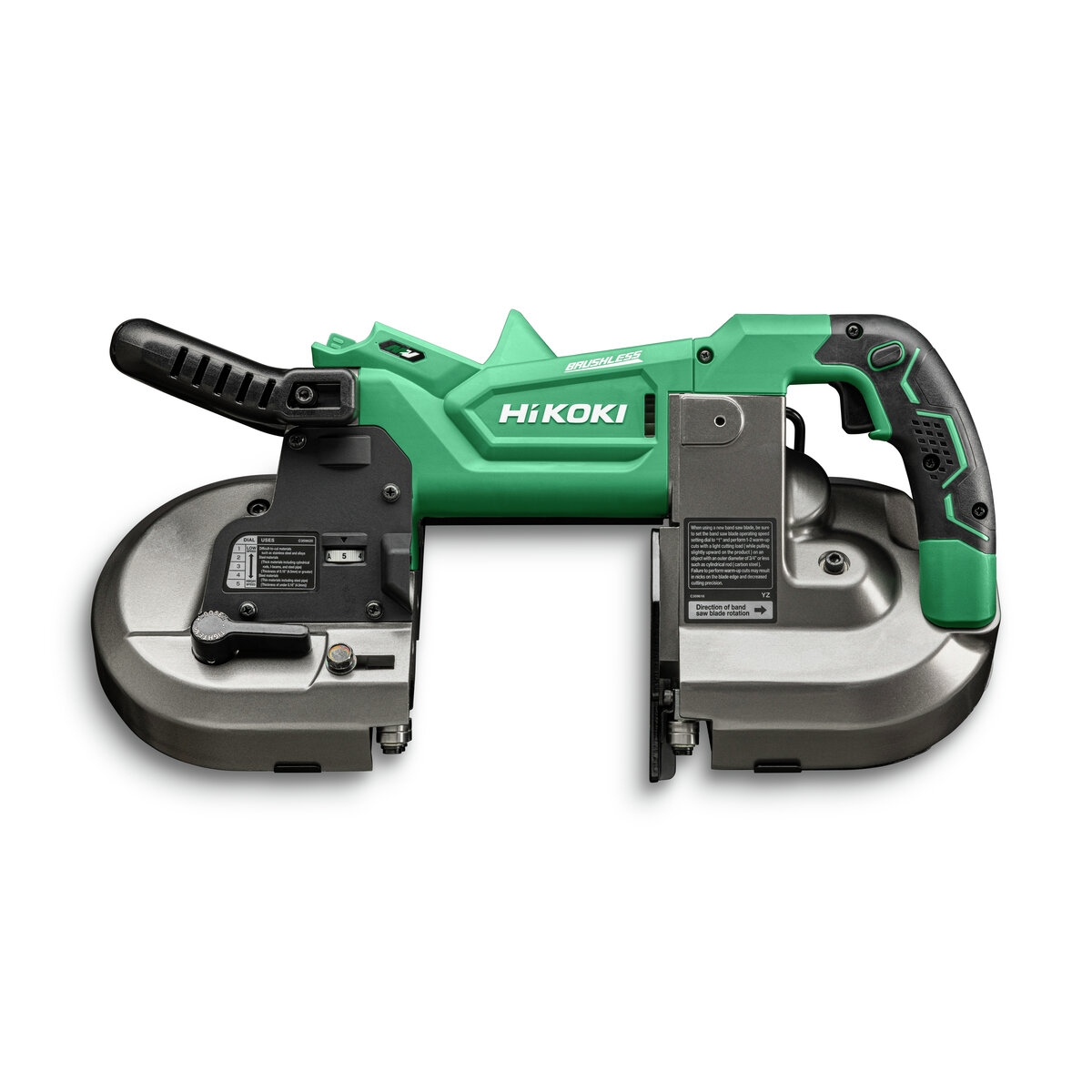

Photo: HiKOKI
HiKOKIBandsaw blade
CB3612DA
UK · standard configuration
Documented dimensionsBand saw blade length 1140 mm; Band saw blade width 12.5 mm; Band saw blade thickness 0.5 mmView size →
Photo: HiKOKI
HiKOKIBandsaw blade
CB3612DA
DE · standard configuration
Documented dimensionsBandsägeblatt, Länge 1140 mm; Bandsägeblatt, Breite 12,5 mm; Bandsägeblatt, Dicke 0,5 mmView size →
Photo: Makita
MakitaBandsaw blade
2107F
US · standard configuration
Documented dimensionsBlade size: Length 1,140 mm (44-7/8"); Width 13 mm (1/2"); Thickness 0.5 mm (0.020")View size →
Photo: Makita
MakitaBandsaw blade
2107F
CA · standard configuration
Documented dimensionsBlade size: Length 1,140 mm (44-7/8"); Width 13 mm (1/2"); Thickness 0.5 mm (0.020")View size →

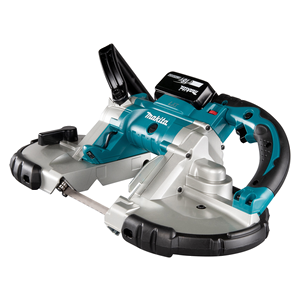

Photo: Makita
MakitaBandsaw blade
DPB180
UK · standard configuration
Documented dimensionsBlade Diametre: 13 x 0,5 x 1140 mmView size →
Photo: Makita
MakitaBandsaw blade
DPB180
CA · standard configuration
Documented dimensionsBlade size: Length 1,140 mm (44-7/8"); Width 13 mm (1/2"); Thickness 0.5 mm (0.020")View size →
Photo: Makita
MakitaBandsaw blade
GBP01
US · standard configuration
Documented dimensionsBlade size: Length 1,140 mm (45″); Width 13 mm (1/2″); Thickness 0.5 mm (0.02″)View size →

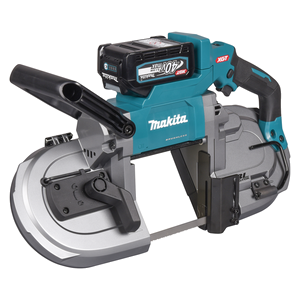

Photo: Makita
MakitaBandsaw blade
PB002G
UK · standard configuration
Documented dimensionsBlade Diametre: 13 x 0,5 x 1140 mmView size →
Photo: Makita
MakitaBandsaw blade
PB002G
CA · standard configuration
Documented dimensionsBlade size: Length 1,140 mm (45); Width 13 mm (1/2); Thickness 0.5 mm (0.02)View size →
Photo: Makita
MakitaBandsaw blade
PB002G
DE · standard configuration
Documented dimensionsScheibendurchmesser 13 x 0,5 x 1140 mmView size →

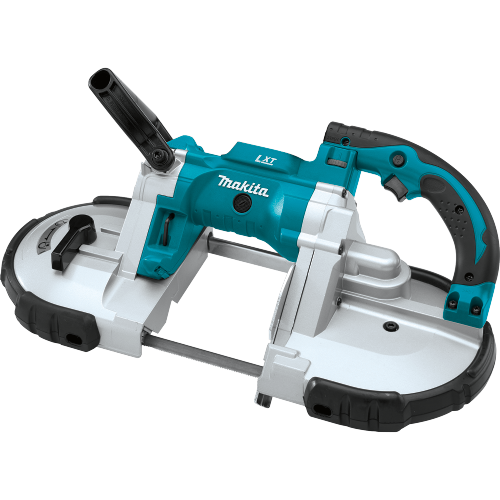

Photo: Makita
MakitaBandsaw blade
XBP02
US · standard configuration
Documented dimensionsBlade size: Length 1,140 mm (44-7/8"); Width 13 mm (1/2"); Thickness 0.5 mm (0.020")View size →
Photo: Optimum
OptimumBandsaw blade
SQ-V10
DE · standard configuration
Documented dimensionsSägebandlänge 1140 mm; Sägebandbreite 13 mm; Sägebanddicke 0,65 mmView size →
Photo: Scheppach
ScheppachBandsaw blade
MBS1100
DE · standard configuration
Documented dimensionsSägeband Länge 1140 mm; max. Sägeband Breite 12.7 mm; Sägeband Stärke max. 0.65 mmView size →
Photo: Scheppach
ScheppachBandsaw blade
MBS1200xt
DE · standard configuration
Documented dimensionsSägeband Länge 1140 mmView size →
Photo: Scheppach
ScheppachBandsaw blade
MBS1200xts
DE · standard configuration
Documented dimensionsSägeband Länge 1140 mm; Breite Sägeblatt 12.7 mm; Dicke Sägeblatt 0.65 mmView size →
